Jiangyin Golden Machinery Equipment Co , Ltd
 |
| Place of Origin: | Jiangsu |
| Brand Name: | Golden |
| Certification: | ISO9001,UL,CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | 30usd to 1890usd per piece |
| Packaging Details: | Box Or Wooden Package |
| Delivery Time: | 7-25 working days |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 3000 tons/month |
| Model NO.: | Forging S45c 1045 Steel Flat Shaft | Transport Package: | Wooden Or Steel Package Seaworthy Packing |
|---|---|---|---|
| Origin: | Jiangsu China(Mainland) | Special Use: | High-strength Steel Plate |
| Length: | 2m,2.5m,3m Or As Required | Material: | 1045 4140 Etc. |
| High Light: | SAE1045 Steel Flat Plate,0.1mm Steel Flat Plate,S45c Forged Steel Plate |
||
|
|
 |

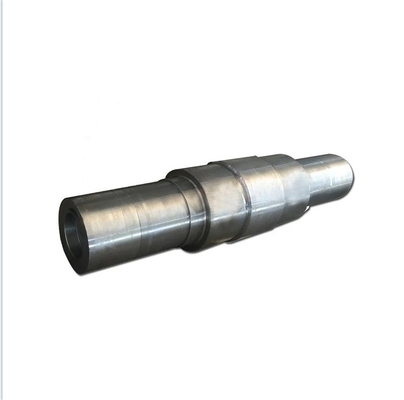

Hot forging aisi4140 sae1045 steel flat head shaft bar
1. Products reference:
| Material | aisi4140 sae1045 aisi4340 42crmo4 |
| Max length | 9000MM |
| Application | Marine engine,diesel engine pull rod,connect to oil cylinder transmision function |
| Melting process | EF+LF+VD |
| Production process |
Forging+heat treatment+rough machining+finish machining |
| Forging ratio | ≥3.5 |
| Applicable standard | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Certification authority | ABS,DNV,BV,GL,KR,CCS,LR,NK,RINA,RS |
| Delivery term | Rough machining(N+T);finish machining(Q+T) |
| Test equipment | Spectrograph,UT device,tensile and compact test machine,metalloscope,outside micrometer,bore dial indicator,hardness test machine |
| service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
2, Custom properties
|
Material elements |
C | Si | Mn | P | S | Cr | Ni | Mo | V |
| 50Mn | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.30 | -- | - |
| 35# | 0.32-0.39 | 0.17-0.37 | 0.50-0.80 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.30 | ||
| 25Cr2Ni4MoV | ≤0.25 | ≤0.23 | ≤0.53 | ≤0.006 | ≤0.004 | ≥1.62 | ≥3.75 | ≥0.33 | ≥0.09 |
| 34CrNiMo6 | 0.30-0.38 | ≤0.040 | 0.50-0.80 | ≤0.035 | ≤0.035 | 1.30-1.70 | 1.30-1.70 | 0.15-0.30 | |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
3. Chemical Property
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 50Mn | Ø25 | ≥645 | ≥390 | ≥13 | ≥40 | V | ≥31 | ≤255HBS |
| 35# | Ø25 | ≥530 | ≥315 | ≥20 | ≥45 | V | ≥55 | ≤197HBS |
| 34CrNiMo6 | Ø15 | 750-900 | 450-600 | ≥13 | ≥55 | V | -40℃≥20 | ≤269HBS |
| 316L | Ø15 | ≥485 | ≥170 | ≥30 | ≥40 | ≤187HBS |
4, Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Packaging Details:Delivery Detail:
| wooden or steel package seaworthy packing |
| about 35 days from order or as per customer requirement |
FAQ
1.Trade term:FOB/CIF/CFR.
2.Payment term:T/T or L/C.
3.Inquiry: Please show me drawings and detail technical specifications
4.Delivery Detail:about 35 days from order
