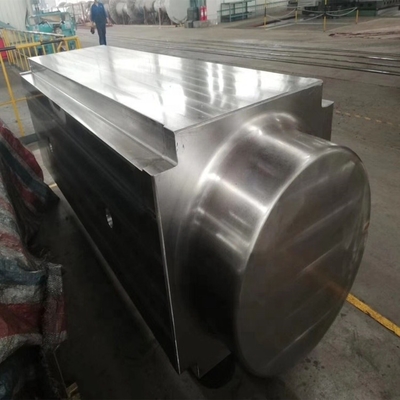

Non-Standard Sae1045 SCM415 SCM435 C45 1045 Forging Steel Block, Steel Square Plate

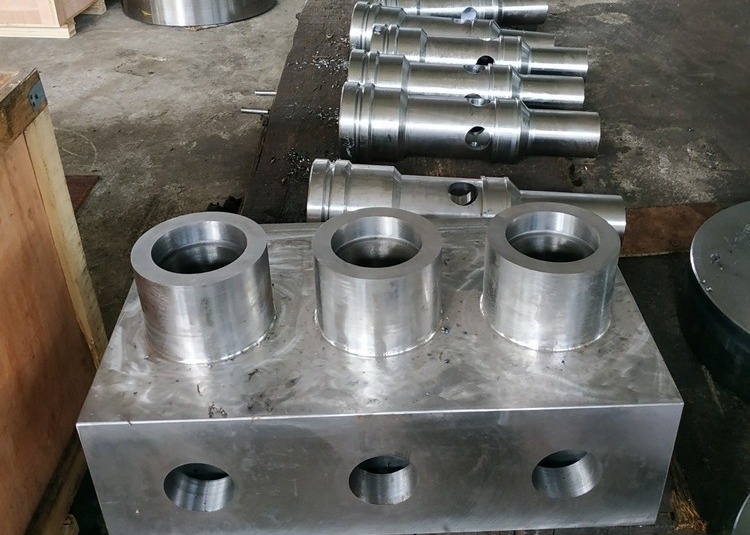

The core unit of the Integrated Hydraulic Manifold Systems is the Hydraulic Manifold Blocks, which is one or more special pre-drilled manifold block with multiple holes, which is installed with a variety of hydraulic components, such as hydraulic valves, pipe joints, pressure gauges, etc., its internal orifice and component orifice are connected, forming a hydraulic integrated circuit, Reduce external piping,to achieve the system control requirements.
Material: Alloy steel, Stainless steel, Carbon steel, Cast iron.
Purpose: pressure, flow
Applicable medium: oil
Rated pressure: 25MPa
Nominal pressure: 25MPa
Pipe diameter: 6-20mm
Weight: 5kg - 3000kg
All parameters can be customized.
Accept all kinds of drawing to sample custom processing
Function of six surfaces of oil line valve block
(1) top surface and bottom surface
The top and bottom surfaces are superimposed joint surfaces with common pressure oil port P, common oil return port O, oil leakage port L and four bolt holes on the surface.
(2) front, back and right side
(a) right side: install frequently adjusted components. Pressure control valve, such as overflow valve, pressure relief valve, sequence valve;Flow control valve class, such as throttle valve.Speed control valve and so on.
(b) front: install directional valves, such as electromagnetic directional valve, one-way valve, etc.; When the pressure valve class and flow valve class in the right side of the installation is not enough, should be installed in front of the adjustment.
(c) after: install direction valve and other unadjusted components.
(3) left side
The left side is provided with the output oil port connecting the actuator, the outer pressure point and other auxiliary oil ports, such as the oil hole of the accumulator and the oil hole of the standby pressure relay.
||The heavy forging: forged ring, shaft, roller, flange, gear, steel block
||Alloy steel or carbon steel ,stainless steel
||ASTM or GB/T3077-1999
||As per specified requirements
||Max. 30 ton
||EF+LF + VD+VC
||Ingot→Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→Rough machining→UT →2nd Heat treatment →finishing machining →Inspection
||EN10228, ASTM A388 or JB/T 5000.15-1998
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
Packing and Delivery
