Place of Origin: | Jiangsu |
Brand Name: | Golden |
Certification: | ISO9001,UL,CE |
Model Number: | Customized |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | 30usd to 2500usd |
Packaging Details: | Box Or Wooden Package |
Delivery Time: | 7-25 working days |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 3000 tons/month |
Type: | Hydraulic Power Units | Material: | SAE1045 CK45 |
---|---|---|---|
Application: | Machinery | Size: | Custom Made |
Name: | Hydraulic Flow Divider | Process: | Forging+Machining(if Need)+surface Treatment |
High Light: | SAE1045 Hydraulic Cylinder Piston Rod,Din1.1191 Hydraulic Cylinder Piston Rod,C45e Cylinder Piston Rod |

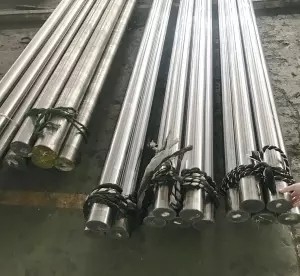

Prime Quality Sae1045 Din1.1191 C45 Hydraulic Cylinder Piston Rods
Detailed Description:
1) Product Name: Forged Shaft, Shaft Forging
2) Material: 4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 9Cr2Mo, 9Cr2W, 9Cr3Mo, 60CrMoV etc.
3) Max weight: 60ton.
4) MOQ: 20ton.
5) FOB Port: Shanghai Port, China.
6) Delivery Time: 60ton in 30 days.
7) Delivery Condition: Rough Machined, Heat Treated, Fine Machined + EN10204: 3.1B
8) Payment: 30% T/T in advance, Balanced C. A. D.; Or 100% L/C.
***
Packaging & Delivery
Packaging Details:Delivery Detail:
wooden or steel package seaworthy packing |
about 35 days from order or as per customer requirement |
Item | Process | Facility |
Inspection items
|
Standard |
01 |
Steel material inspection |
Chemical composition (EF+LF+VD) |
Material standard | |
surface | Ingot inspection specification |
|||
Ingot type and weight | Material standard | |||
02 | Material store |
Division put | warehouse management | |
1 | Heat | Heat furnace | Temperature/Time | Heating process specification Forging production procedure |
2 ↓ |
Forging | Press | Reduction ratio,forging temperature,deformation, Surface and dimensions |
Forging process card Forging procedure |
3 ↓ |
Heat treatment | heat treatment furnace |
heat treatment charts | 1st heat-treatment card Forging procedure |
4 ↓ |
Rough inspection |
Dimensions, apperance, Mark |
Inspection specification Forging procedure |
|
5 ↓ |
Rough UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
6 ↓ |
Saw cutting | Saw machine | Dimension | IQC and forging |
7 ↓ |
rough turning | turning-lathe | Dimension,appearance | Rough machining drawing |
8 ↓ |
UT | UT equipment | Single defect, concentrated defects bottom wave attenuation |
UT standard or customer's technical requirements |
9 ↓ |
Q+T heat treatment |
heat treatment furnace |
heat treatment charts | Heating process specification |
10 ↓ |
Sampling or machining | machining tool | rough machining drawing sampling drawing |
sample machining drawing |
11 ↓ |
mechanical property test |
tensile testing machine/ impact testing machine |
ambient temperature,humidity, Test temp.Sample dimension, test method |
Standard technical specification |
12 ↓ |
finish machining |
machining tool |
Dimension,appearance | finish machining drawing |
13 ↓ |
UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
14 ↓ |
MT | MT equipment | Magnetic particle indication |
Test standard or Technical requirements |
15 ↓ |
Mark | Steel seal | marking content | Product standard Technical requirements Forging process |
16 ↓ |
Final inspection |
Appearance, dimension, mark acceptance inspection |
Product inspection specification Product standard P.O. |
|
17 | Protection/ package |
Blasting Blasting equipment |
appearance coating thickness |
Product standard Technical requirements |
Mill Frequently Used Steel Materials:
1) Wind Power Shaft: 42CrMo4V, 34CrNiMo6; Wind Power Flange: S355NL, C22, 16Mn, 20Mn, 42CrMo, F304.
2) Forged Pipe Fittings: SA106 CL B, SA106 CL C, WB36, 12Cr1MoV, SA335 P11, P12, P22, P91, SA182 Gr. F1, Gr. F5, Gr. F11 CL2, Gr. F12 CL2, Gr. F22 CL3, SA350 Gr. LF1, Gr. LF2,
Gr. LF3.
3) Pressure Vessel Forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH.
4) Shaft Related Forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130, 4140.
5) Gear Related Forgings: 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo.
6) Copper Forgings: C10100, C10200, C10300, C10700, C12000, C12200.
Forging Production Flow
Enquiry With Drawing In Details
Confirm Steel Material, Chemical Compositions, Mechanical Properties, Tolerances
Confirm Payment Terms, Order Materials or Check Material in Stock
Check Material Chemical Compositions, Material Weight, Dimensions
Cut Materials, Record Weight, Pre-Heating For Forging
Forging Ratios, Heat Treatment After Forging, Dimension Check
Rough Machining, UT Test, Heat Treatment
Fine Machining, UT & PT Test, Dimensions Inspection, Mechanical Properties Test
Customer Inspection at Site, Packing, Delivery Arrangement
Balance Payment Confirmation, Dispatch Forgings or Castings
Bill of Loading Confirmation, MTC Dispatch, Customs Clearances
Order Accomplished
