Jiangyin Golden Machinery Equipment Co , Ltd
 |
| Place of Origin: | China |
| Brand Name: | hot forged st52 s355 steel ring |
| Certification: | ISO PED |
| Model Number: | Q235 steel forged ring |
| Minimum Order Quantity: | MOQ: 1pc |
|---|---|
| Price: | 150usd/pc to 2500usd/pc |
| Packaging Details: | Oiled surface + export packing |
| Delivery Time: | 7-25 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300pcs/week |
| Material: | Alloy, Carbon And Stainless Steel | OD:: | From 300mm To 3500mm |
|---|---|---|---|
| Heat: | Normalized/quenched/annealed | Trade Term: | FOB China |
| Surface: | Milling | ||
| High Light: | Bright Stainless Rolled Rings,Hot Forged Steel Rolled Rings,Forged Steel Ring Roller 16Mn |
||
|
|
 |

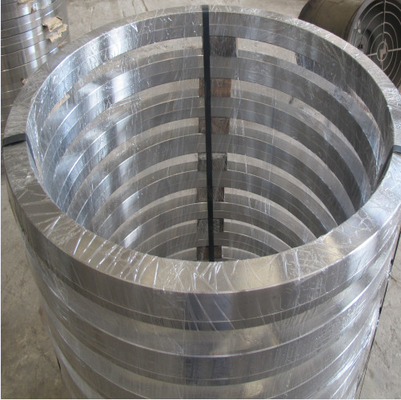

Name: Hot Forging St52 Q235 16Mn Steel Rings Forging with Milling Surface
Reference
Product Produce Flow
1.Inquiry with drawings in details.
2.Confirm steel material, chemical compositions, mechanical properties, tolerance.
3.Confirm payment terms,order materials or check material in stock.
4.Check material chemical compositions, material weight, dimensions.
5.Cut materials record weight, making mould for casting of pr-hearting for forging.
6.Forging ratios, heat treatment ,dimension check.
7.Rough machining, UT test,heat treatment.
8.Semi-finish, quenching,
8.Fine machining, UT test, dimension inspection, mechanical properties test.
9.Customer inspection, packing, delivery arrangement.
| Material | 1045,4140, 16Mn,304,316L,20MnMo,20CrMnMo |
| Equipment | 3150T Open die hydro press |
| Apply | pressure vessel tube plate |
| Melting process | LF+EF+VD |
| Production process | Foring+heat treatment+rough machine+finish machine |
| Ratio | ≥3 |
| Applicable certificate | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Cerfificate Authority | ISO,BV,SGS, IST, UL,CTI |
| Deliver condition | Rough machine(N+T);finish machine(Q+T) |
| Inspection equipment | Spectrograph,UT device,tensile and impact test machine,metalloscope,hardness test device |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom property
| Elemnets | C | Si | Mn | P | S | Cr | Ni | Mo | Nb |
| 16MNnD | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 20MnMoNb | 0.16-0.23 | 0.17-0.37 | 1.20-1.50 | ≤0.035 | ≤0.035 | -- | -- | 0.45-0.60 | 0.020-0.045 |
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | - | |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 16MnD | Ø15 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥34 | ＝＝ |
| 20MnMoNb | Ø15 | ≥635 | ≥490 | ≥15 | U | 37 | 187-229 | |
| 304L | Ø15 | ≥520 | ≥205 | ≥40 | -- | ≤187HBS | ||
| 316L | Ø15 | ≥485 | ≥170 | ≥30 | ≥40 | ≤187HBS |
Process procedure:
Forging process flow quality control:
Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Advantage:
1.High-precision dimensional tolerance;
2.Excellent mechanical properties;
3.Produce different dimension based on customer’s requirements;
4.Advanced manufacture equipment and inspection devices;
5.Excellent technical personality;
6.Control the production procedure strictly;
7.Pay attention on the package protection;
8.Quality full service.
Packing and delivery:
Contact Person: Allen.W.
Tel: +8613621523596
