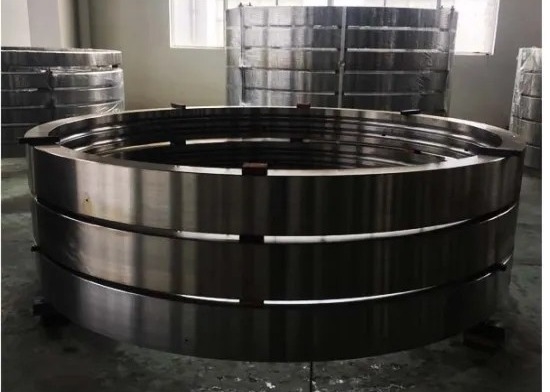

316l Steel Seamless Bearing Ring Forging Round Roller

316l Steel Seamless Bearing Ring Forging Round Roller

  • 316l Steel Seamless Bearing Ring Forging Round Roller
  • 316l Steel Seamless Bearing Ring Forging Round Roller
  • 316l Steel Seamless Bearing Ring Forging Round Roller
  • 316l Steel Seamless Bearing Ring Forging Round Roller
  • 316l Steel Seamless Bearing Ring Forging Round Roller
  • 316l Steel Seamless Bearing Ring Forging Round Roller
316l Steel Seamless Bearing Ring Forging Round Roller
Product Details:
Place of Origin: Jiangsu
Brand Name: hot forging ring
Certification: ISO9001,UL,CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: 45usd to 3500usd
Packaging Details: Box Or Wooden Package
Delivery Time: 3-25 working days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 3000 tons/month
Contact Now
Detailed Product Description
Machining: Final Machining Material: 316, 1045
Heat Treatment: Q+T Or As Required Rings Type: Steel Seamless Ring
Certificates: ISO
High Light:

Steel Seamless Bearing Ring

,

Seamless Round Steel Rings

,

Forging Steel Ring Roller 316l

316l Steel Seamless Bearing Ring Forging Round Roller 0

 Din1.4462 1.4541 Stainless Steel Bearing Ring, Sae4140 4340 Steel Seamless Rings Forging

We are the leading manufacturer of heavy forging steel parts, our business is custom fabrication forging by customer's drawings and technical requirements. We are the member of " Confederation of Chinese Metal forming Industry".

Forging products mainly including: Forging Steel Seamless Ring or Steel Hot Rolling Ring, Forging Steel Roller, Forging Steel Bar, Forging Hollow Bar, Forging Round Disc, Forging Shaft, Forging Module, Pipe Die Forging, Forging Stabilizer,etc
We are able to provide complete machining services such as boring, milling, turning, grinding,welding and fabrication.Usually we make it according to your drawing or requirements.


Process: EAF + LF + VD + Forging + Heat Treatment (optional)
Delivery Condition: Hot forging +Rough machining (black surface after Q/T)+ Turning(optional)
Technical Data: Chemical Compositions, Physical Properties and Mechanical Testing.
Test: Ultrasonic test according to SEP 1921-84 3C/c.
Standard: GB, AISI, ASTM, DIN, JIS, BS, etc.
Quality Management Certification: ISO 9001:2008, CE , PUV



Materials:
According to customers' demands,we are available of stainless steel, carbon steel, alloy steel, alloy tool steel, AISI316L, AISI304L, 1.4541, 1.4462, 1.4301, 1.4404, F51, 25CrMo4, 42CrMo4, 16MnCr5, Ck45, P280GH, 40Cr, 17CrNiMo6, 34CrNiMo6, ST52-3, S355J2G3, S355JR ,40CrNiMo, Sae8620 etc.
Manufacturing way: Roll forged, rough turned, heat treated, CNC turned, milled, drilled, threaded, grinded.
Heat treatment: Annealing, Normalizing, Quenching+Tempering(Q+T), Hardening, etc.
Size:  From 50mm to 5,000mm.
Weight: From 50kg/pc to 10,
000kg/pc.



Item Process Facility



Inspection items



Standard

01
Steel material
inspection
  Chemical composition
(EF+LF+VD)
Material standard
  surface Ingot inspection
specification
  Ingot type and weight Material standard
02 Material
store
  Division put warehouse management
1 Heat Heat furnace Temperature/Time Heating process
specification
Forging production
procedure
2
Forging Press Reduction ratio,forging
temperature,deformation,
Surface and dimensions
Forging process card
Forging procedure
3
Heat treatment heat treatment
furnace
heat treatment charts 1st heat-treatment card
Forging procedure
4
Rough
inspection
  Dimensions, apperance,
Mark
Inspection specification
Forging procedure
5
Rough UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation
UT standard or
customer's technical
requirements
6
Saw cutting Saw machine Dimension IQC and forging
7
rough turning turning-lathe Dimension,appearance Rough machining
drawing
8
UT UT equipment Single defect, concentrated
defects bottom wave attenuation
UT standard or
customer's technical
requirements
9
Q+T
heat treatment
heat treatment
furnace
heat treatment charts Heating process
specification
10
Sampling or machining machining tool rough machining drawing
sampling drawing
sample machining
drawing
11
mechanical
property test
tensile testing machine/
impact testing machine
ambient temperature,humidity,
Test temp.Sample dimension,
test method
Standard
technical specification
12
finish
machining
machining
tool
Dimension,appearance finish machining drawing
13
UT UT equipment Single defect, concentrated
Defects bottom wave
attenuation
UT standard or
customer's technical
requirements
14
MT MT equipment Magnetic particle
indication
Test standard or
Technical requirements
15
Mark Steel seal marking content Product standard
Technical requirements
Forging process
16
Final
inspection
  Appearance, dimension, mark
acceptance inspection
Product inspection
specification
Product standard
P.O.
17 Protection/
package
Blasting
Blasting equipment
appearance
coating thickness
Product standard
Technical requirements



Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer's own inspection.
4: Third party inspection.
5: UT( Ultrasonic Testing), MT, X-ray test, Spectrometer, Tensile strength, Impact test machine, Hardness tester



Superiority
1. We had already passed the authentification by the ISO9001-2008, and established a completed set of quality assurance system.
2. Under such a complete set of quality assurance systems, there is a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working out production plan, production, test and inspection, packaging, storage, delivering, etc.
3. We also have a complete set of equipment and techniques for testing and controlling the performance of the forging products, which ensures



Forging Process and Inspection

316l Steel Seamless Bearing Ring Forging Round Roller 1

316l Steel Seamless Bearing Ring Forging Round Roller 2

Packing and Delivery

316l Steel Seamless Bearing Ring Forging Round Roller 3
